Ventura

Ventura Microlight Aircraft

The Ventura is an all-metal construction aircraft made with state-of-the-art industrial CNC technology, the Ventura is a high-wing aircraft that can accommodate several engines with power ranging from 100 to 180 hp.  The Ventura is available in 600, 750 and 800Kg MTOW configurations

The ventura is a rugged high wing, single engine airplane equipped with tricycle landing gear. What you feel flying the ventura, is a superior level of comfort, quality and efficiency ideal for touring, training and recreational flights.

The combination of excellent STOL features, with sustained cruising speed and brilliant manoeuvrability, make it the ultimate touring aircraft capable of optimum performance in any situation, giving the pilot full control and fun!

Thanks to the Riblet GA 35-418 Aerofoil the Ventura is able to approach for landing at

50 mph at maximum weight and land on semi-prepared runwaysless than 250M long with a wide margin of safety

Pilots will appreciate the quality and reliability built into the ventura, guaranteed by years of R&D and all the competence that I.C.P. has gained in almost forty years of experience.

Fuel / Consumption

Fuel capacity 2 x 36 L + 6 L reserve / 20,6 US Gal
Extended range option 4 x 36 L + 6 L reserve / 9,6 US Gal

Finishing

Colour Of your choice

External paint

Internal Nextel finishing

Engine Options

Rotax 912S (100 HP)

Rotax 912IS (100 HP injected engine)

Rotax 914 (115 HP)

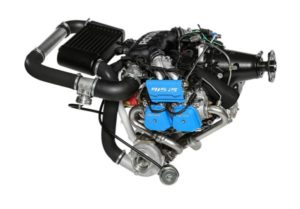

Rotax 915IS (135 HP)

Lycoming IO 360 engine (180HP).

Capacity

Baggage allowance 70 kg + 20 kg / 154 lbs + 44 lbs
MTOW (Kg) 600 kg (Maximum take off weight) 1320 lbs
Empty weight (Kg) 340 kg (Empty weight of standard configuration) 750 lbs
Useful load (Kg) 260 kg (Passenger, baggage and fuel) 574 lbs

Detailed Specs

TECHNICAL SPECS
  • Engine ROTAX 912 ULS 100 hp with airbox
  • Propeller DUC FLASH
  • Wheels 4” with aerodynamic fairing
  • Finishing External paint + internal Nextel finishing
  • Instrument Standard flight and engine instruments + radio, xponder, GPS
  • Fuel capacity 2 x 36 L + 6 L reserve / 20,6 US Gal
  • Extended range option 4 x 36 L + 6 L reserve / 9,6 US Gal
  • Baggage allowance 70 kg + 20 kg / 154 lbs + 44 lbs
  • MTOW (Kg) 600 kg (Maximum take off weight) 1320 lbs
  • Empty weight (Kg) 340 kg (Empty weight of standard configuration) 750 lbs
  • Useful load (Kg) 260 kg (Passenger, baggage and fuel) 574 lbs
  • Length 7,32 mt / 24 ft
  • Wing span 9 mt /29 ft
  • Height 2,7 mt /9 ft
Performance

TEST AIRCRAFT TAKE OFF WEIGHT
TOW 500 kg (Take off weight)
LOAD 160 kg (Two people + 20 L fuel)
ECONOMY CRUISE @ 4800 RPM, 2000 FT
TAS 170 kph (True airspeed)
CAS 165 kph (Calibrated air speed)
MAX CRUISE @ 5400 RPM, 2000 FT
TAS 197 kph (True airspeed)
CAS 191 kph (Calibrated air speed)
CLIMB
Climb at 110 kph 1050 fpm (at 1000 ft)
STALL SPEED
FLAPS UP 66 kph (Calibrated air speed)
FLAPS FULL 60 kph (Calibrated air speed)
TAKE OFF AND LANDING PERFORMANCE
TAKE OFF RUN 75 m
TAKE OFF DISTANCE 195 m
LANDING RUN 85 m
LANDING DISTANCE 190 m

Purchasing Options

The airplane is offered ready to fly and in a kit version. The Kits are modular and have different levels of components (Kit 1, Kit 2, Kit 3 and Kit 4) with estimated assembly time between 110 and 350 working hours. A wide offer of options allows the pilot to customize the Ventura to satisfy your requirements and needs. The instrument panel, wider and roomier, can contain the latest technological innovations.

Safety & Handling

Thanks to the Riblet GA 35-418 profile of the new wing, the Ventura is able to approach for landing at 80 km/h at maximum weight and to operate from semi-prepared runways long less than 250 meters with a wide margin of safety.
Cabina Ventura

The combination of these excellent STOL features, with sustained cruising speeds and brilliant maneuverability, make it an aircraft capable of optimum performance in any situation, giving the pilot full control and fun!

These are the words that describe the Ventura of I.C.P. Using our extensive and consolidated knowledge, experience and success of the Savannah (over 2,500 units produced), the Ventura is ready to amaze you!

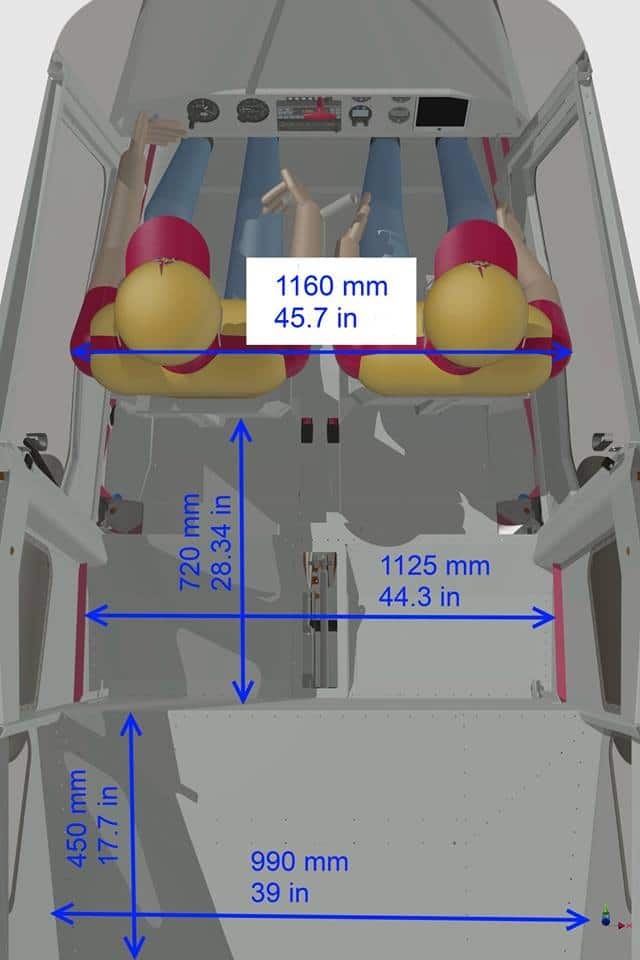

Pilot eyes are below the wing (not in!)  Control panel position is low giving good forward visibility.
Huge glass opening on the doors and roof which gives excellent visibility in the turn.

Engine Options For The Ventura Microlight Aircraft

Highlighted Features of the Ventura Microlight Aircraft

Self Build Option

If you have mechanical experience or have resources to build out your own Kit, this is a good option

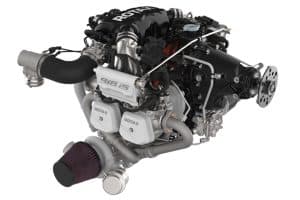

Rotax Engines

All our engines are passed via stringent quality controls and with a name like Rotax you know you are in safe hands.
1

Instrument Panel Customisation

A wide offer of options allows the
pilot to customize the Ventura
satisfying their requirements and needs.
0%

0% APR Financing

Kit Build Assistance

We have a number or SLA’s to choose from depending on your requirements.

  • Full Build / Paperwork and 3 year service
  • Build and Paperwork only
  • Build assistance only
  • Half day service workshop
